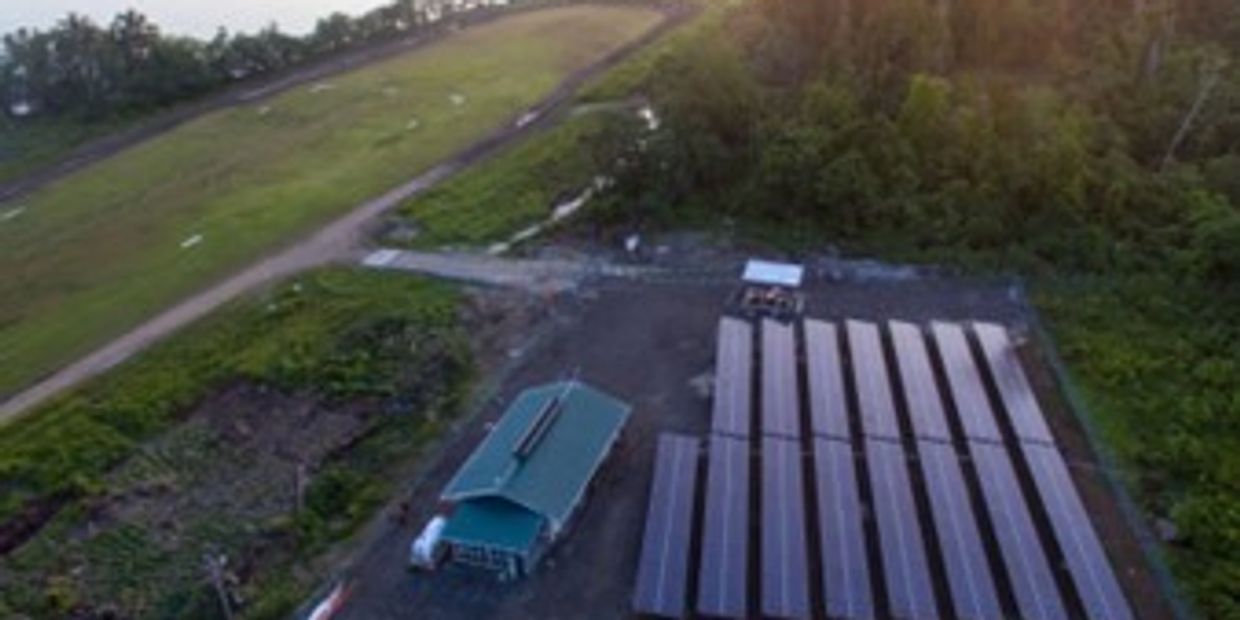

224kWp PV MINI GRID HYBRID SYSTEM
The solar/diesel/battery hybrid power system was designed and installed by Clay Energy as an EPC project to provide 24-hour power supply to the island customers.
A SMA Sunny Island three phase multi-cluster inverter system converts the DC battery energy into normal 240/415Vac power for the island’s loads and will automatically recharge the cluster battery bank via the AC bus (generator and/or the STP Tripower grid connect inverters). The generator is interfaced with the inverter system which starts the generator when required to recharge the battery bank.
SYSTEM CONFIGURATION
SOLAR PANELS - 800 x 280W Trina Solar panels
INVERTERS - 8 x SMA STP25000TL-30
BATTERY INVERTER - 18 x SMA Sunny Island SI8.0H
BATTERY - 288 x BAE 14PVV2660, 2070Ah @ C10
SOLAR PANEL MOUNTING - Schletter Ground Mount Structure
INVERTER MOUNTING - Indoor/Outdoor
168kWp PV MINI GRID HYBRID SYSTEM
The solar/diesel/battery hybrid power system was designed and installed by Clay Energy as an EPC project to provide 24-hour power supply to the island customers.
A SMA Sunny Island three phase multi-cluster inverter system converts the DC battery energy into normal 240/415Vac power for the island’s loads and will automatically recharge the cluster battery bank via the AC bus (generator and/or the STP Tripower grid connect inverters). The generator is interfaced with the inverter system which starts the generator when required to recharge the battery bank.
SYSTEM CONFIGURATION
SOLAR PANELS - 600 x 280W Trina Solar panels
INVERTERS - 6 x SMA Sunny Tripower STP25000TL-30 inverters
BATTERY INVERTER - 15 x SMA Sunny Island SI8.0H
BATTERY - 120 x BAE 22PVV4180, 3210Ah @ C10
SOLAR PANEL MOUNTING - Schletter Ground Mount Structure
INVERTER MOUNTING - Outdoor
