69kWp PV GRID CONNECT SYSTEM

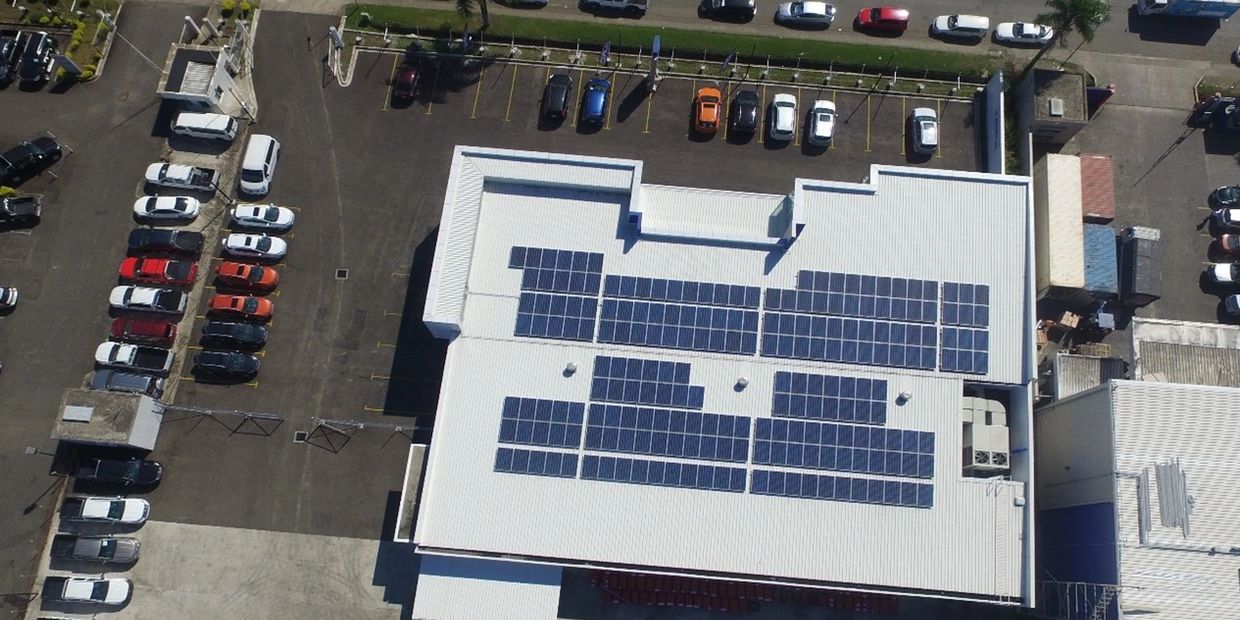

The PV grid connect system, designed and installed by Clay Energy as an EPC project, consists of 288 x Trina 240W roof mounted solar array. It is sized to supply the daily usage of the complex.
A total of 3 x 20kW SMA STP20000TLEE inverters have been used to supply 3-phase power to the building. System also consists of energy meters, protection equipment, outdoor/interior cabling between solar array, inverters, and main switchboard as per required standards.
SYSTEM CONFIGURATION
SOLAR PANELS - 288 x 240W Trina Solar panels
INVERTERS - 3 x SMA Sunny Tripower STP20000TLEE-10 inverters
SOLAR PANEL MOUNTING - Aluminium Roof Mount System
INVERTER MOUNTING - Outdoor with rain hood
PV ENERGY YIELD - 88MWh per annum
54kWp PV GRID CONNECT SYSTEM
The 54.6kWp PV grid connect system consists of 210 x JA Solar 260W roof mounted solar array. It is sized to supply the daily usage of the complex.
A total of 2 x 20kW SMA STP25000TL-30 inverters have been used to supply 3-phase power to the building. Designed and installed by Clay Energy as an EPC project, the system also consists of energy meters, protection equipment, outdoor/interior cabling between solar array, inverters, and main switchboard as per required standards.
SYSTEM CONFIGURATION
SOLAR PANELS - 210 x 260W JA Solar panels
INVERTERS - 2 x SMA Sunny Tripower STP25000TL-30 inverters
SOLAR PANEL MOUNTING - Aluminium Roof Mount System
INVERTER MOUNTING - Indoor
